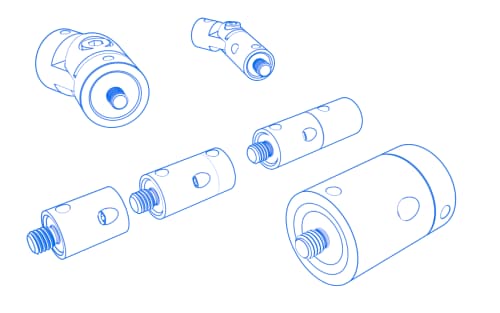

- Knuckles and rotary elements(14)
- Screws(11)

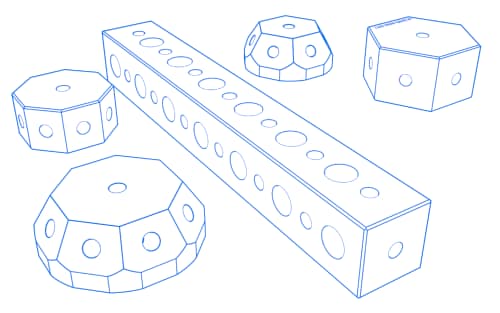

- Multi sided cubes(6)

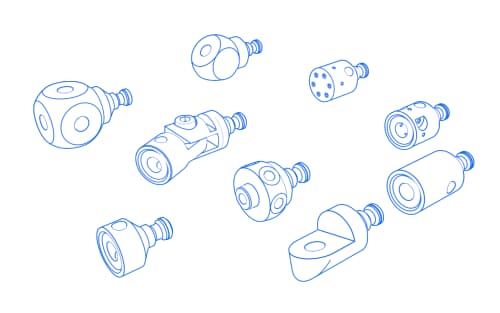

- Inserts with cone adapter(12)
- Styli holders(5)
- M3 XXT(33)
- M3(3)
- M2(9)
- M5 Pro(4)
M5
M5 connecting elements are primarily used in VAST stylus systems. Choose from a range of M5 threaded fasteners: Cone Mount, Cone Inserts, Rotatable Star Elements and Angles, Fixed Angles and Cubes, and Kinked and Rotated Elements.
626107-6280-120
- Product Type
- Star Element
- Length (L)
- 10.0 mm
- Angle 1 (W1)
- 90.0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 7.0 mm
- Ø Shaft (DS)
- 2.0 mm
- Application
- Connect
- Ø Body (DG)
- 11.0 mm
- Weight
- 4.0 g
£ 76.00excl. VAT
Available
626105-6280-030
- Product Type
- Rotary Elements
- Length (L)
- 30.0 mm
- Material
- Titanium
- Connection Type
- M5
- Application
- Connect
- Ø Body (DG)
- 11.0 mm
- Weight
- 11.33 g
- Connection Type Out
- M5
£ 77.00excl. VAT
Available
626107-6022-226
- Product Type
- Angle
- Length (L)
- 43.0 mm
- Angle 1 (W1)
- 90.0 °
- Angle 2 (W2)
- 10.0 °
- Material
- Titanium
- Connection Type
- M5 Pro
- Measurement Length (ML)
- 35.0 mm
- Application
- Angle
- Ø Body (DG)
- 20.0 mm
- Weight
- 24.0 g
£ 143.00excl. VAT
Longer delivery time
626107-6022-202
- Product Type
- Angle
- Length (L)
- 43.0 mm
- Angle 1 (W1)
- 90.0 °
- Angle 2 (W2)
- 15.0 °
- Material
- Titanium
- Connection Type
- M5 Pro
- Measurement Length (ML)
- 35.0 mm
- Application
- Angle
- Ø Body (DG)
- 20.0 mm
- Weight
- 24.0 g
£ 129.00excl. VAT
Available
626107-6023-028
- Product Type
- Angle
- Length (L)
- 16.0 mm
- Angle 1 (W1)
- 65.0 °
- Angle 2 (W2)
- - 65.0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 10.0 mm
- Application
- Angle
- Ø Body (DG)
- 11.0 mm
- Weight
- 16.5 g
£ 80.00excl. VAT
Made to Order
626105-6020-040
- Product Type
- Angle
- Length (L)
- 15.0 mm
- Length 1 (L1)
- 15.0 mm
- Angle 1 (W1)
- 40.0 °
- Material
- Aluminum
- Connection Type
- M5
- Application
- Connect
- Width (B)
- 12.0
- Weight
- 11.0 g
- Connection Type Out
- M5
£ 79.00excl. VAT
Longer delivery time
626105-6020-030
- Product Type
- Angle
- Length (L)
- 15.0 mm
- Length 1 (L1)
- 15.0 mm
- Angle 1 (W1)
- 30.0 °
- Material
- Aluminum
- Connection Type
- M5
- Application
- Connect
- Width (B)
- 12.0
- Weight
- 11.0 g
- Connection Type Out
- M5
£ 79.00excl. VAT
Available
626107-6022-045
- Product Type
- Angle
- Length (L)
- 43.0 mm
- Angle 1 (W1)
- 0.0 °
- Angle 2 (W2)
- 45.0 °
- Material
- Titanium
- Connection Type
- M5 Pro
- Measurement Length (ML)
- 35.0 mm
- Application
- Angle
- Ø Body (DG)
- 20.0 mm
- Weight
- 24.0 g
£ 129.00excl. VAT
Available
626107-6021-045
- Product Type
- Angle
- Length (L)
- 25.0 mm
- Angle 1 (W1)
- 0.0 °
- Angle 2 (W2)
- 45.0 °
- Material
- Titanium
- Connection Type
- M5 Pro
- Measurement Length (ML)
- 17.0 mm
- Application
- Angle
- Ø Body (DG)
- 20.0 mm
- Weight
- 17.0 g
£ 110.00excl. VAT
Longer delivery time
626105-6280-010
- Product Type
- Angle
- Length (L)
- 30.5 mm
- Angle 1 (W1)
- 90.0 °
- Connection Type
- M5
- Measurement Length (ML)
- 25.0 mm
- Application
- Connect
- Ø Body (DG)
- 11.0 mm
- Weight
- 9.0 g
- Connection Type Out
- M5
£ 75.00excl. VAT
Available
626105-6280-040
- Product Type
- Rotary Elements
- Length (L)
- 40.0 mm
- Material
- Titanium
- Connection Type
- M5
- Application
- Connect
- Ø Body (DG)
- 11.0 mm
- Weight
- 16.0 g
- Connection Type Out
- M5
£ 116.00excl. VAT
Longer delivery time
626107-6022-060
- Product Type
- Angle
- Length (L)
- 43.0 mm
- Angle 1 (W1)
- 0.0 °
- Angle 2 (W2)
- 60.0 °
- Material
- Titanium
- Connection Type
- M5 Pro
- Measurement Length (ML)
- 35.0 mm
- Application
- Angle
- Ø Body (DG)
- 20.0 mm
- Weight
- 24.0 g
£ 143.00excl. VAT
Longer delivery time
626105-6280-060
- Product Type
- Star Element
- Length (L)
- 25.0 mm
- Angle 1 (W1)
- 90.0 °
- Material
- Titanium
- Connection Type
- M5
- Measurement Length (ML)
- 20.0 mm
- Application
- Connect
- Ø Body (DG)
- 11.0 mm
- Width (B)
- 13.0
- Weight
- 10.0 g
£ 136.00excl. VAT
Longer delivery time
626107-6020-505
- Product Type
- Angle
- Length (L)
- 16.0 mm
- Angle 1 (W1)
- 16.7 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 10.0 mm
- Application
- Angle
- Ø Body (DG)
- 11.0 mm
- Weight
- 9.5 g
- Connection Type Out
- M5
£ 65.00excl. VAT
Longer delivery time
626107-6023-020
- Product Type
- Angle
- Length (L)
- 16.0 mm
- Angle 1 (W1)
- 49.0 °
- Angle 2 (W2)
- - 49.0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 10.0 mm
- Application
- Angle
- Ø Body (DG)
- 11.0 mm
- Weight
- 16.5 g
£ 92.00excl. VAT
Made to Order
626119-0001-019
- Product Type
- Screw
- Connection Type
- M5
- Application
- Connect
£ 9.00excl. VAT
Available
626107-6020-030
- Product Type
- Angle
- Length (L)
- 16.0 mm
- Angle 1 (W1)
- 30.0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 10.0 mm
- Application
- Angle
- Ø Body (DG)
- 11.0 mm
- Weight
- 9.5 g
- Connection Type Out
- M5
£ 72.00excl. VAT
Available
626107-6023-030
- Product Type
- Angle
- Length (L)
- 16.0 mm
- Angle 1 (W1)
- 52.0 °
- Angle 2 (W2)
- - 18.0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 10.0 mm
- Application
- Angle
- Ø Body (DG)
- 11.0 mm
- Weight
- 16.5 g
£ 80.00excl. VAT
Longer delivery time
626105-6020-065
- Product Type
- Angle
- Length (L)
- 15.0 mm
- Length 1 (L1)
- 15.0 mm
- Angle 1 (W1)
- 65.0 °
- Material
- Aluminum
- Connection Type
- M5
- Application
- Connect
- Width (B)
- 12.0
- Weight
- 11.0 g
- Connection Type Out
- M5
£ 86.00excl. VAT
Made to Order
626107-6022-201
- Product Type
- Angle
- Length (L)
- 43.0 mm
- Angle 1 (W1)
- 0.0 °
- Angle 2 (W2)
- 10.0 °
- Material
- Titanium
- Connection Type
- M5 Pro
- Measurement Length (ML)
- 35.0 mm
- Application
- Angle
- Ø Body (DG)
- 20.0 mm
- Weight
- 24.0 g
£ 143.00excl. VAT
Made to Order
626107-6020-486
- Product Type
- Angle
- Length (L)
- 16.0 mm
- Angle 1 (W1)
- 75.5 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 10.0 mm
- Application
- Angle
- Ø Body (DG)
- 11.0 mm
- Weight
- 9.5 g
- Connection Type Out
- M5
£ 57.00excl. VAT
Longer delivery time
626107-6023-014
- Product Type
- Angle
- Length (L)
- 16.0 mm
- Angle 1 (W1)
- 90.0 °
- Angle 2 (W2)
- 9.0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 10.0 mm
- Application
- Angle
- Ø Body (DG)
- 11.0 mm
- Weight
- 16.5 g
£ 92.00excl. VAT
Longer delivery time
626107-6023-017
- Product Type
- Angle
- Length (L)
- 16.0 mm
- Angle 1 (W1)
- 0.0 °
- Angle 2 (W2)
- 78.0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 10.0 mm
- Application
- Angle
- Ø Body (DG)
- 11.0 mm
- Weight
- 16.5 g
£ 92.00excl. VAT
Made to Order
626107-6022-755
- Product Type
- Angle
- Length (L)
- 43.0 mm
- Angle 1 (W1)
- 230.3 °
- Angle 2 (W2)
- 38.1 °
- Material
- Titanium
- Connection Type
- M5 Pro
- Measurement Length (ML)
- 35.0 mm
- Application
- Angle
- Ø Body (DG)
- 20.0 mm
- Weight
- 24.0 g
£ 143.00excl. VAT
Longer delivery time
