M5 carbon fibre plate extensions

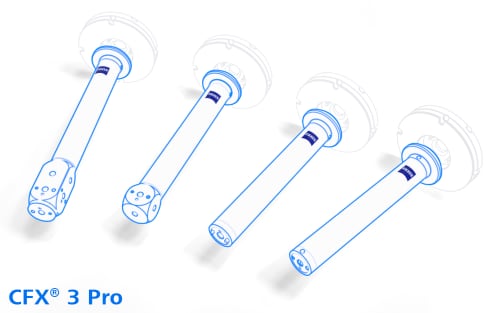

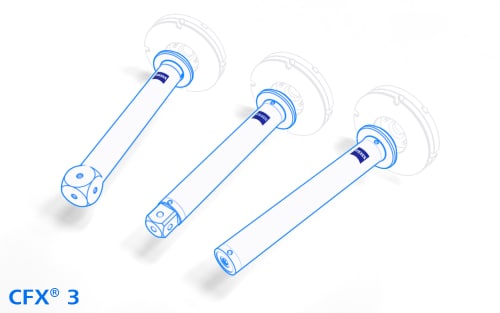

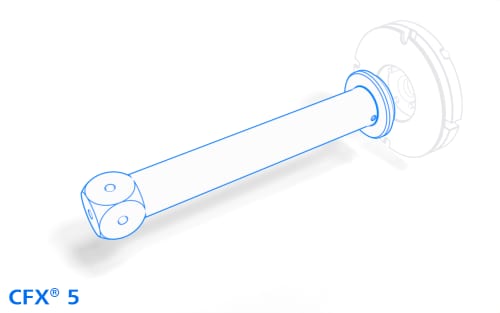

To achieve optimal stiffness in a stylus system, you must ensure that the number of interfaces is as small as possible. Screw connections are weak points due to their frictional connection, which must be avoided. It is particularly important to achieve the best possible stiffness in the region of the plate where the lever forces of the probe system are greatest. In many applications, it is not necessary to use an adapter plate with cubes, since there is no feature in the X or Y direction. ZEISS REACH CFX plate extensions replace the standard interface between the plate cube and extension. This saves an interface and ensures better stiffness throughout the system.

79 products
Sort results

So Sad.

We are sorry. For these criterias we have no products to offer. Try and reset all filters or remove that last filter you set.

Remove last filter
